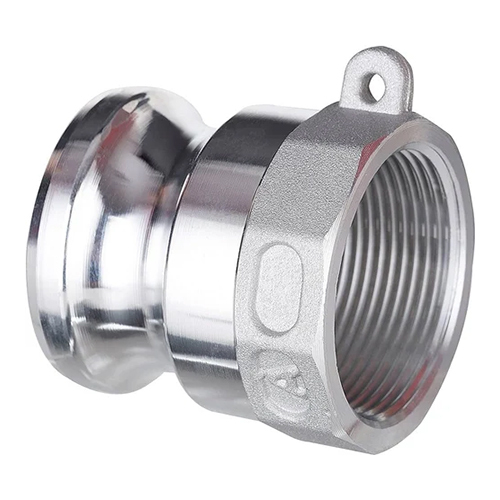

SS Camlock Coupling F Type

Get a Price/Quote

SS Camlock Coupling F Type Specification

Sealing
Requires gasket or PTFE tape for leak-proof connection

Head Code
Round

Bore
Full Bore

Thread
BSPT/NPT

Connection
Male Threaded

Torque
Hand tight, or as per thread specification

Max. Speed
Not applicable (static application)

Material
Stainless Steel 304/316

Structure
Single piece adapter with camlock groove

Standard
A-A-59326 (MIL-C-27487), DIN 2828, EN 14420-7

Inner Diameter
Available from 1/2 inch (12.7 mm) to 6 inch (152.4 mm)

Outer Diameter
Varies by size (contact manufacturer for details)

Application
Industrial fluid transfer, chemical processing, petrochemical applications, water and wastewater management, food & beverage, and agricultural uses

Surface Treatment
Natural/Polished/Passivated

Technique
Precision Casting

Shape
F Type (Adapter Male Thread)

Operating Pressure
Up to 250 psi (varies depending on size and material)

Installation
Tool-free quick connect/disconnect

End Connections
One end camlock groove, other end male thread

Size Availability
1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6"

Weight
Depends on size (approx. 100g to 2.5kg)

Temperature Range
-20C to +150C (depending on gasket material)

Color
Silver Metallic

Corrosion Resistance
Excellent due to stainless steel construction

About SS Camlock Coupling F Type

Experience the supreme reliability and fresh utility of the SS Camlock Coupling F Type. Crafted from elite stainless steel 304/316, this adapter boasts exceptional corrosion resistance, making it ideal for demanding environments. With a sublime temperature range of -20C to +150C, reduced maintenance needs, and hand-tight operation up to 250 psi, this product is designed for quick, tool-free connections. Suitable for full-bore flow, its polished silver metallic finish and precise threading bring a mark of quality. Enjoy elite performance in water, chemical, food, and industrial applications.

Versatile Usage & Applications

The SS Camlock Coupling F Type delivers outstanding performance across diverse applications besides industrial fluid transfer. Ideal for petrochemical operations, food and beverage processing, water and wastewater management, as well as chemical processing, it supports agricultural irrigation and site-specific installations. Thanks to its fresh design and elite corrosion resistance, this adapter seamlessly integrates into systems that demand hygiene, durability, and reliable sealing for both small-scale and large-scale fluid handling.

Premium Supply Ability & Sample Policies

With a wide domestic market reach, our supply of SS Camlock Coupling F Type meets both urgent and bulk purchase orders efficiently. We cater to premium clients across India with flexible terms. Sample policies are customizable to expedite decision-making; samples are available on request, subject to standard supplier terms. Whether purchasing for trial or volume, buyers experience elite support, transparency, and quick dispatch from our trusted trader network for reduced procurement lead times.

FAQ's of SS Camlock Coupling F Type:

Q: How do I install the SS Camlock Coupling F Type for leak-proof operation?

A: Installation is tool-free; simply hand-tighten the male threaded end and ensure a proper gasket or PTFE tape is used. This ensures a leak-proof connection suitable for various operating pressures.

Q: What are the main benefits of using stainless steel Camlock F Type couplings?

A: The fresh, stainless steel construction grants sublime corrosion resistance, long service life, and suitability for rigorous chemical, food, and industrial applications. Their quick-connect design saves installation time and reduces maintenance costs.

Q: Where can SS Camlock Coupling F Type be applied effectively?

A: These couplings are highly effective in industrial fluid transfer, chemicals, wastewater management, agricultural irrigation, and food & beverage processing, thanks to their elite sealing and corrosion-resistant properties.

Q: What size options are available for this coupling?

A: Sizes range from 1/2 inch (12.7 mm) to 6 inch (152.4 mm) inner diameter, making it suitable for a variety of applications and flow requirements. Specific dimensions can be confirmed with the supplier.

Q: When is a sample available, and what is your sample policy?

A: Samples are available upon request after discussing your requirements. Our standard policy accommodates premium clients and domestic market buyers, supporting your decision-making process before placing bulk purchase orders.
