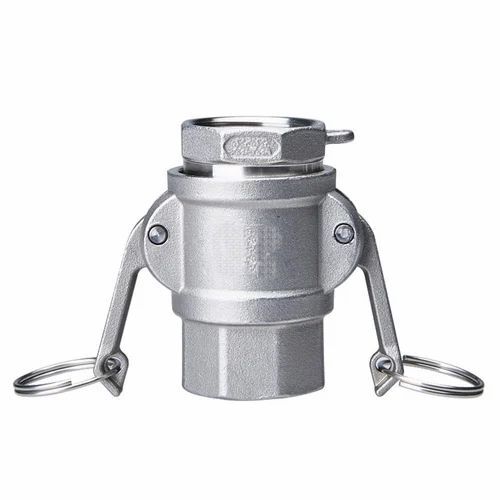

SS Camlock Coupling D Type

Name: SS Camlock Coupling D Type
Brand: SHREE SAMARTH ENTERPRISES
Price: 180.0 INR
Availability: InStock

Price 180.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SS Camlock Coupling D Type Specification

Bore
Full bore

Thread
Threadless / Socket end (camlock system)

Sealing
Buna-N or Viton Gasket

Torque
Hand-tight only (no specific torque required)

Connection
Female Coupler

Max. Speed
N/A (static connector, not rotational)

Head Code
Round

Material
Stainless Steel 304/316

Structure
Camlock Coupler - D Type (female coupler with dust cap)

Standard
A-A-59326 (formerly MIL-C-27487)

Inner Diameter
1/2 to 6 (12mm to 150mm)

Outer Diameter
Varies by size (typically 25mm to 175mm)

Application
Quick hose coupling, fluid transfer, chemical and petroleum industries, water and wastewater management

Surface Treatment
Polished

Technique
Investment Casting

Shape
Rectangular Coupler with locking arms

Pressure Rating
Up to 250 PSI depending on size and temperature

Cap Type
Dust cap included

Application Range
Industrial, Agricultural, Marine, Chemical Processing

Locking System
Dual cam arms with safety pins

Installation Method
Quick connect/disconnect, no tools required

Weight
Varies depending on size (e.g. 0.3-2.0 kg)

Interchangeability
Compatible with other camlock couplers per standard

Temperature Range
-20C to +150C (depending on gasket)

Media Compatibility
Water, petroleum, chemicals, powders

Corrosion Resistance
Excellent, suitable for harsh environments

About SS Camlock Coupling D Type

Discover a monumental hot deal on Sterling SS Camlock Coupling D Type, expertly crafted from the finest stainless steel 304/316 for unmatched corrosion resistance. Designed for industrial, agricultural, marine, and chemical processing, this quick connect/disconnect coupling boasts a special rate, offering you superior value. With a dual cam-arm safety locking system, full bore design, and a polished surface, it ensures seamless compatibility and high performance up to 250 PSI. Trust this dust cap-equipped coupler for safe, efficient fluid transfer-even in harsh environments. Find your perfect fit-sizes range from 1/2" to 6" (12-150mm).

Sterling Performance for Versatile Usage and Media

SS Camlock Coupling D Type is engineered for versatility in usage, efficiently managing water, chemicals, petroleum products, and powders. This special-rate coupling excels in quick hose connections for fluid transfer, chemical processing, agricultural spraying, and waste management. Its robust, polished stainless steel design ensures enduring performance, while the dust cap safeguards internal surfaces. Whether for industrial or marine duty, it's the finest solution for diverse application media, offering a remarkable blend of strength and reliability.

Export Markets, Sample Policies and Secure Freight Packaging

Our SS Camlock Coupling D Type is sought after across domestic markets and international destinations. We facilitate flexible payment terms and uphold transparent sample policies. Efficient freight solutions ensure timely delivery, while each product is meticulously packaged to retain its sterling condition upon arrival. Ideal for traders and suppliers in India and abroad, our couplings offer monumental value whether shipped domestically or globally, giving customers peace of mind with every transaction.

FAQ's of SS Camlock Coupling D Type:

Q: How should I install the SS Camlock Coupling D Type for optimal sealing?

A: Installation is straightforward-simply push the female coupling onto a compatible male adapter, lower both dual cam arms until secure, and insert the safety pins. No tools or thread sealant are required, ensuring quick, hand-tight assembly and reliable sealing with the included Buna-N or Viton gasket.

Q: What are the main benefits of choosing stainless steel 304/316 couplings?

A: SS 304/316 couplings deliver monumental corrosion resistance and long-term durability. Their robust composition makes them ideal for harsh industrial, marine, or chemical environments, ensuring excellent performance and longevity, even with frequent use in aggressive media.

Q: When is the dust cap useful in these couplers?

A: The dust cap is especially beneficial during periods of disconnection or storage. It prevents dust, debris, or moisture from entering the coupling's bore, maintaining system cleanliness and protecting internal sealing surfaces.

Q: Where can these camlock couplers be applied effectively?

A: They are widely used in fluid transfer systems, water and wastewater management, chemical and petroleum industries, marine applications, and agricultural irrigation due to their strength, quick connect features, and compatibility with various media.

Q: What is the process for requesting samples and arranging freight?

A: Samples can be requested according to our standard policy-contact our sales team for details. We offer secure packaging and organize freight for both domestic and international shipments, ensuring the product is delivered in pristine condition.
