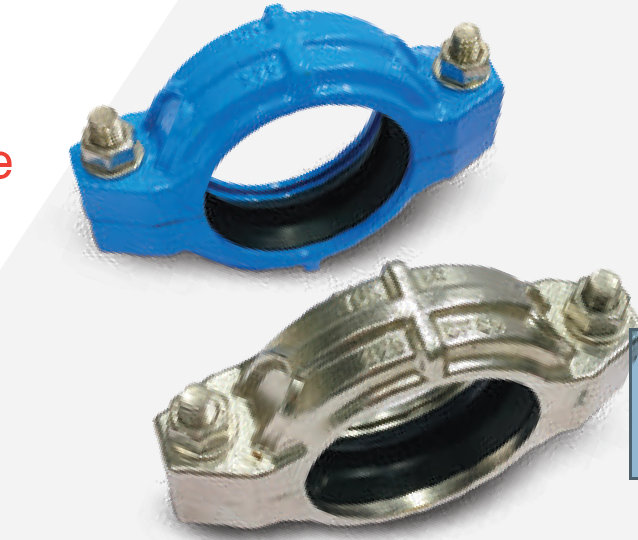

S.S Victaulic Grooved Coupling 304

Name: S.S Victaulic Grooved Coupling 304
Brand: SHREE SAMARTH ENTERPRISES
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

S.S Victaulic Grooved Coupling 304 Specification

Head Code
Circular

Sealing
EPDM/NBR Rubber Gasket

Connection
Grooved & Clamped

Bore
Full Bore

Max. Speed
Suitable for static and dynamic applications

Torque
Tightening torque depends on size, typically 40-120 Nm

Material
Stainless Steel 304

Structure
Coupling Body with Bolts and Gasket

Standard
ASTM A403 / ANSI, DIN, EN, JIS

Inner Diameter
Varies (1 to 12 nominal sizes)

Outer Diameter
Corresponds to pipe size (based on standard)

Application
Pipe connection for HVAC, fire protection, water supply, oil & gas and industrial pipelines

Surface Treatment
Polished

Technique
Grooved

Shape
Round Coupling

Body Thickness
3.0-8.0 mm (size dependent)

Maintenance
Low maintenance design

Service Life
Designed for long term use in demanding environments

Gasket Standards
Compliant with ASTM F477

Temperature Range
-30C to +110C (depending on gasket type)

Bolt Material
Stainless Steel 304

Pressure Rating
Up to 300 psi (20 bar) depending on size

Corrosion Resistance
Excellent due to SS304

Installation
Quick and easy, requires no welding

Color
Metallic Silver

Pipe Compatibility
Compatible with schedule 10/40 steel and stainless pipes

Leakage Prevention
Double seal gasket design

About S.S Victaulic Grooved Coupling 304

Procure the top-rated S.S Victaulic Grooved Coupling 304, engineered for optimum performance in varied pipeline environments. This customizable coupling boasts a wondrous blend of durability and corrosion resistance, rendered by premium SS304 construction. The ravishing metallic silver, polished finish adds a sleek aesthetic while supporting a temperature range of -30C to +110C (gasket dependent) and pressure ratings up to 300 psi. Installation is quick and requires no welding, ensuring minimal downtime. Benefit from its double seal gasket design for superior leakage prevention and long service life in demanding applications. Perfect for those seeking low-maintenance, compliant, and reliable connections for HVAC, fire protection, water supply, oil & gas, and industrial pipelines.

Versatile Application Across Multiple Sectors

The S.S Victaulic Grooved Coupling 304 is specially designed for connecting pipes in diverse environments. Its application spans HVAC systems, fire protection networks, water distribution, oil & gas lines, and industrial pipelines. Used extensively for both static and dynamic pipework, this coupling ensures a secure, leak-free union in demanding settings, such as commercial buildings, factories, and utility plants. Opt for this coupling where a robust, corrosion-resistant, and long-lasting connection is essential for continual operation.

Packaging Excellence, Certifications, and Shipping Clarified

The S.S Victaulic Grooved Coupling 304 is shipped in sturdy, export-standard packaging to ensure product integrity during transit. Each unit complies with globally recognized standards, including ASTM, ANSI, DIN, EN, and JIS, making it highly reliable for institutional and industrial use. FOB Port options within India are available based on customer preference. For securing the best rate or to inquire about the asking price and shipment details, connect directly with our supplier or trading desk.

FAQ's of S.S Victaulic Grooved Coupling 304:

Q: How is the S.S Victaulic Grooved Coupling 304 installed?

A: Installation is both quick and easy; the coupling is designed for grooved and clamped connections, requiring no welding, which greatly reduces labor time and complexity.

Q: What environments is this coupling best suited for?

A: This coupling excels in demanding settings such as HVAC lines, fire protection networks, water supply systems, oil & gas conduits, and industrial processing pipelines where corrosion resistance and leak prevention are vital.

Q: When should I choose a double seal gasket design?

A: Choose the double seal gasket design when maximum leakage prevention is critical, especially in applications that involve fluctuating pressures or demanding environmental conditions.

Q: Where does the product's excellent corrosion resistance come from?

A: The use of high-quality Stainless Steel 304 (SS304) provides exemplary protection against corrosion, ensuring longevity even in harsh industrial or outdoor conditions.

Q: What benefits does the low maintenance design offer to users?

A: The low maintenance design results in fewer shutdowns, reduced servicing costs, and reliable performance over a long service life, making it ideal for large-scale and critical infrastructure projects.
